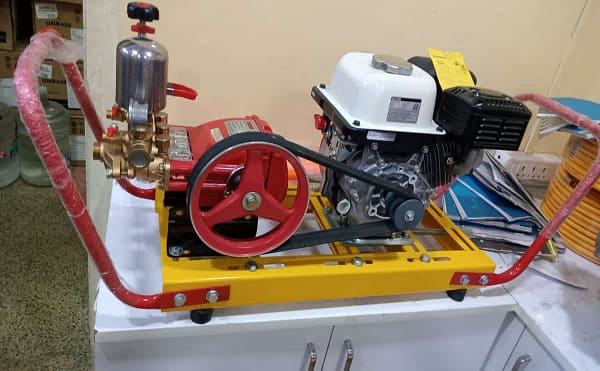

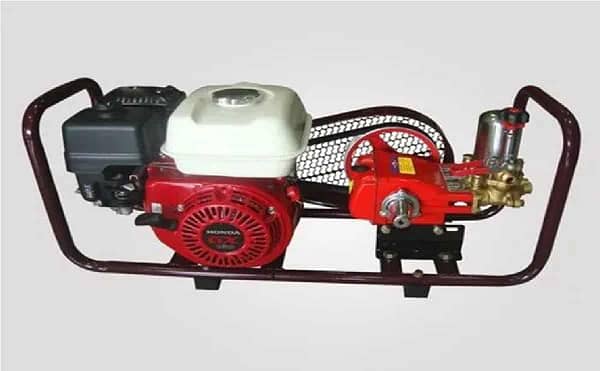

Honda HTP Sprayer pump with GX 80 / GX 160 engine heavy duty 4 stroke engine agricultural sprayers equipment farm tool product

Honda htp Sprayer GX 80 / GX 160 engine heavy duty 4 stroke engine agricultural sprayers equipment farm tool product

The htp sprayer with honda engine is a heavy-duty agricultural sprayers equipment farm tool that brings efficiency and reliability to your farming operations. With its powerful 4-stroke engine, this sprayer pump is designed to handle even the toughest spraying tasks with ease.

Specification

• Engine: GX 80 / GX 160 4-stroke engine
• Power Output: Varies depending on the engine model
• Pump Type: High-pressure sprayer pump
• Capacity: Suitable for large-scale agricultural spraying
• Pressure: Adjustable pressure control
• Tank Capacity: Varies depending on the model
• Nozzle Type: Wide range of nozzle options for different spraying needs

Applications

The Honda HTP Sprayer Pump is ideal for a wide range of agricultural applications, including:

• Crop spraying
• Pest and weed control
• Fertilizer application
• Irrigation
• Greenhouse spraying

Features

• Heavy-duty construction for long-lasting durability
• Powerful 4-stroke engine for efficient and reliable performance
• Adjustable pressure control for precise spraying
• Easy to operate and maintain
• Wide range of nozzle options for versatile spraying
• Designed for large-scale agricultural spraying

With the Honda HTP Sprayer Pump with GX 80 / GX 160 Engine, you can trust that you have a reliable and powerful tool to enhance your farming operations. Its heavy-duty construction and efficient performance make it a valuable asset for any farmer or agricultural professional.

Honda htp pump GX160 sprayer

Brand	Honda (Engine)
Sprayer Type	HTP
Model Name/Number	GX160 (Engine)
Material	Mild Steel
Fuel Type	Diesel
Displacement	163 cm3
Engine Type	4-stroke single cylinder, OHV petrol engine, 25 Degree inclined cylinder, Horizontal shaft
Ignition System	Transistorised
Cylinder Sleeve Type	Cast Iron Sleeve
Bore x Stroke	68 x 45 mm
Compression Ratio	9.0 : 1
Net Power	3.6 kW ( 4.8 HP ) / 3600 RPM
Cont Rated Power	2.5 kW ( 3.4 HP ) / 3000 RPM, 2.9 kW ( 3.9 HP ) / 3600 RPM
Max. Net Torque	10.3 Nm / 1.05 kgfm / 2500 RPM
Starter	Recoil (el. start optional)
Fuel Tank Capacity	3.1 Liter
Fuel Cons. at Cont. Rated Power	1.4 L/h – 3600 RPM
Engine Oil Capacity	0.6 Liter
Dimensions (L x W x H)	312 x 362 x 346 mm
Dry Weight	15.1 kg

Honda htp pump GX80 sprayer :

Brand	Honda (Engine)
Sprayer Type	Portable
Model Name/Number	GX 80 (Engine)
Displacement	79.7 cm3
Engine Type	4-stroke single cylinder,OHV petrol engine,25 Degree inclined cylinder,Horizontal shaft
Ignition System	Transistor Type Magneto Ignition
Cylinder Sleeve Type	Cast Iron Sleeve
Bore x Stroke	46 x 48 mm
Compression Ratio	9 : 1
Net power	1.5 kW ( 2 HP ) / 3600 rpm
Cont Rated Power	1.2 kW ( 1.6 HP ) / 3600 rpm
Dry Weight	11.1 kg
Dimensions (L x W x H)	275 x 342 x 323 mm
Engine Oil Capacity	0.36 L
Fuel Cons. at Cont. Rated Power	0.6 L/h – 3600 rpm
Fuel Tank Capacity	1.5 L
Starter	Recoil (el. start optional)
Max. Net Torque	4.5 N.m / (0.46 kgf.m / 2500 rpm
